decorative grilles

Our craftsmen believe that design is in the details. That’s evident in KEES architectural grilles. Our stamped and lattice-type decorative grilles are functional art that pulls an entire building’s design together. A sophisticated selection of materials, patterns and finishes combine to create eye-catching signature looks.

Architectects and owners who want something beyond the ordinary appreciate painted finishes offered in any color detectable by the human eye. Stainless steel and brass are available with distinctive satin- or mirror-polished finishes, and brass can be oxidized for a classic weathered finish. Another option is aluminum, available with a satin finish, painted or etched with a durable, colorful anodized finish.

  • High-quality materials and finishes provide lasting style and durability
  • Versatile mounting options fit any application
  • Rectangular shapes are common but uncommon ones like circular, triangular, arched and oval shapes are available
  • Custom pattern designs may be submitted to us in any file format

KEY

[object Object]
SUBMITTAL
[object Object]
CATALOG
[object Object]
SPECIFICATIONS
[object Object]
PERFORMANCE
DATA

General Information

Decorative Grille – Rectangular
[object Object]
[object Object]
[object Object]
[object Object]
Decorative Grille – Round
[object Object]
[object Object]
[object Object]
[object Object]
Decorative Grille – Curved
[object Object]
[object Object]
[object Object]
[object Object]
Decorative Grille – Mounting Options
[object Object]
[object Object]
KEES Inc.
KEES Inc.
Decorative Grille – Other Options
[object Object]
[object Object]
KEES Inc.
KEES Inc.

CSI format specifications

Custom specifications can be created using the ARCAT Specification Writing Tool, "SpecWizard".

Standard patterns

We offer our pattern views in several formats.

  • Download a complete set of patterns as a single PDF document.
  • For a quick view of a pattern, click on the pattern name below.
  • To view the dimensional information and a full scale section of a pattern, click on the submittal icon to the right of the pattern name.

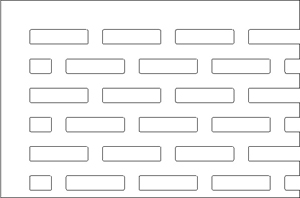

BRICK
BR100
[object Object]
CASABLANCA

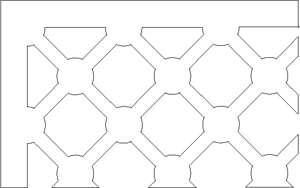

CA200
[object Object]
CATHEDRAL

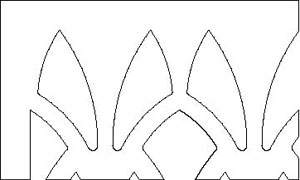

CT238
[object Object]
CIRCLELINK

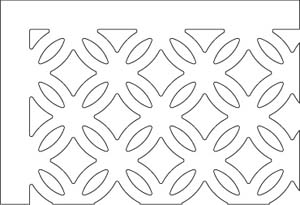

CI125
[object Object]

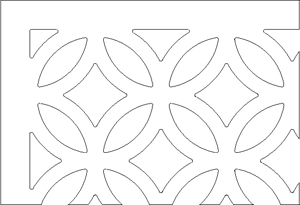

CI200
[object Object]

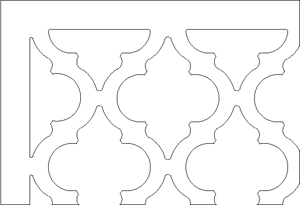

CLASSIC
CS200
[object Object]
CLOVERLEAF

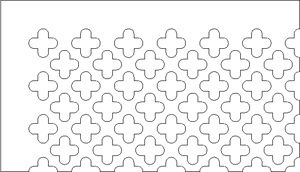

CL050
[object Object]

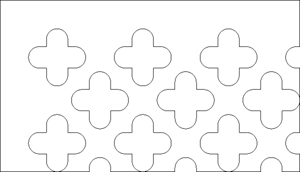

CL100
[object Object]
CROSS-LINK
CR075
[object Object]

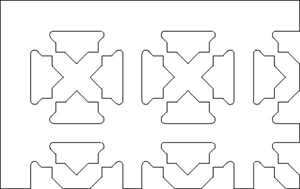

CR150
[object Object]
DIAMOND (CAMELOT)

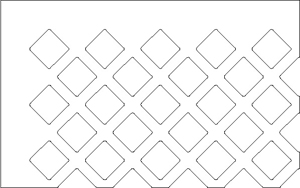

DI050
[object Object]

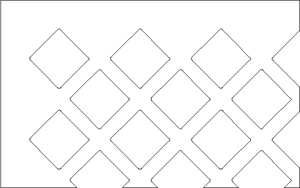

DI075
[object Object]

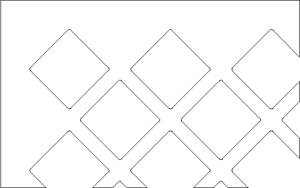

DI100
[object Object]
EGYPTIAN
EG100
[object Object]

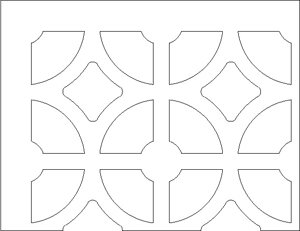

EG200
[object Object]
FORMED LOUVER

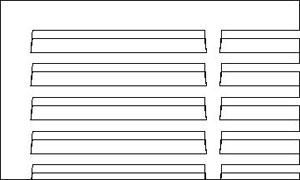

FL300
[object Object]
GOTHIC

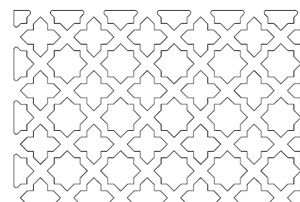

GO053
[object Object]

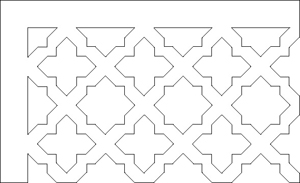

GO106
[object Object]
GRECIAN (UNION JACK)

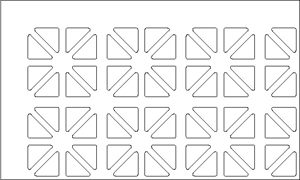

GR125
[object Object]
GR238
[object Object]

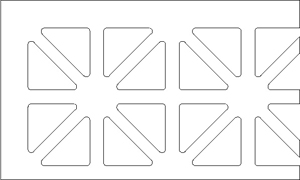

GR250
[object Object]

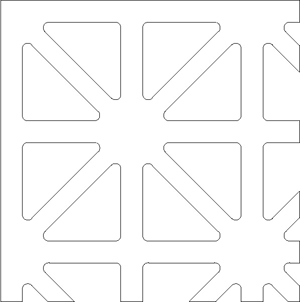

GR500
[object Object]
HALF SHELL

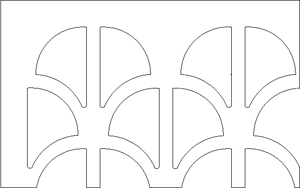

HA150
[object Object]
HA200
[object Object]

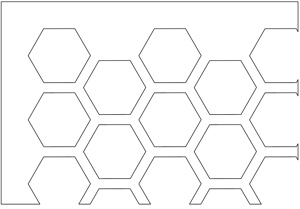

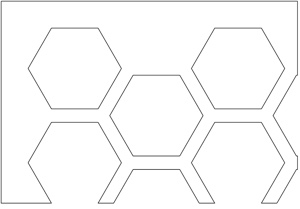

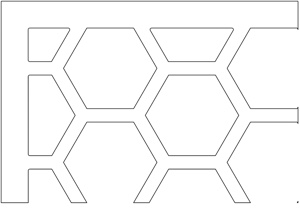

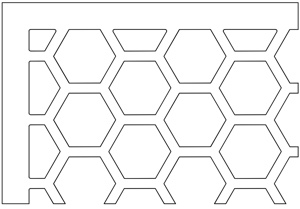

HONEYCOMB

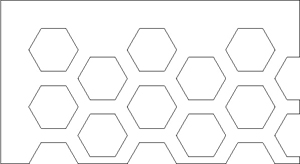

HO075
[object Object]
LATTICE

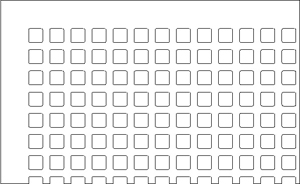

LA025
[object Object]

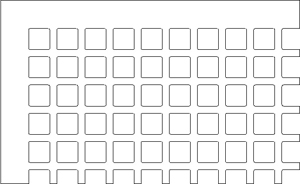

LA038
[object Object]

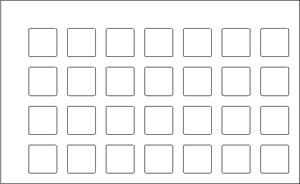

LA050
[object Object]

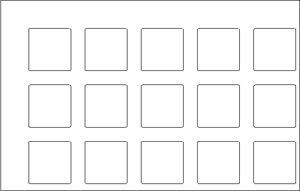

LA075
[object Object]

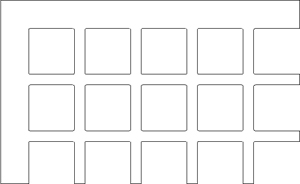

LA081
[object Object]

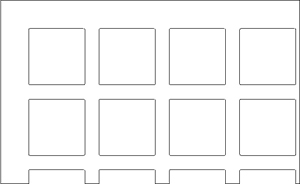

LA100
[object Object]
MAJESTIC

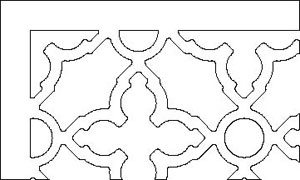

MJ225
[object Object]

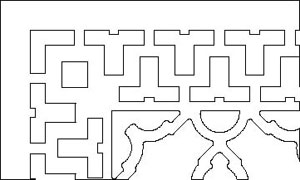

MJ225B
[object Object]
MALTESE

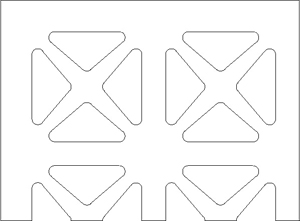

MA175
[object Object]
MOSAIC
MO079
[object Object]

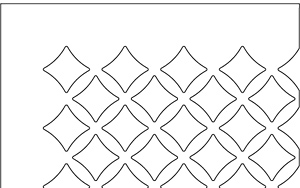

MO138
[object Object]
OCTAGONAL

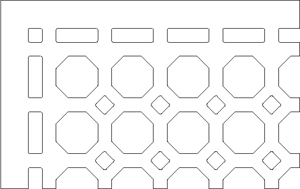

OC044
[object Object]
OC075
[object Object]
PERFEX

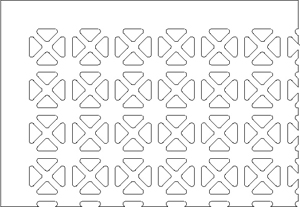

PE062
[object Object]

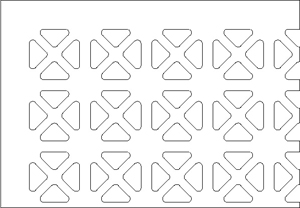

PE088
[object Object]

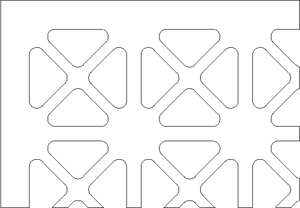

PE168
[object Object]
PETALS

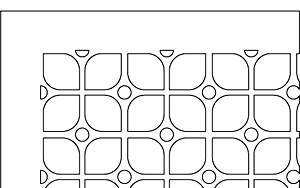

PT188
[object Object]
RECTANGULAR CANE

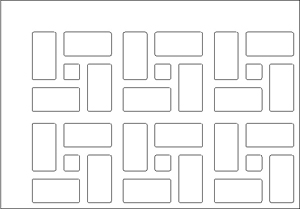

RE125
[object Object]

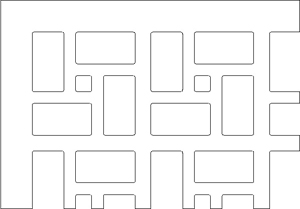

RE163
[object Object]

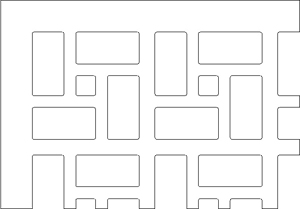

RE169
[object Object]

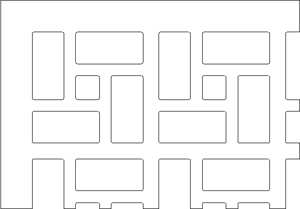

RE175
[object Object]

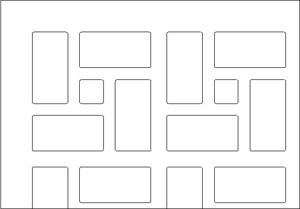

RE188
[object Object]
ROUND CANE

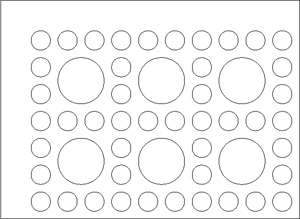

RO131
[object Object]
ROUND, STAGGERED

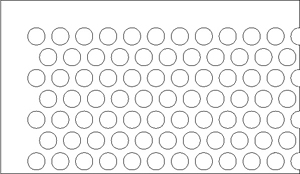

SA031
[object Object]
ROUND, STRAIGHT

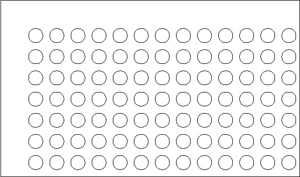

SR025
[object Object]
ROSETTE
RS300
[object Object]
SCHOOL SLOT

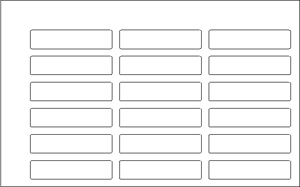

SC138
[object Object]

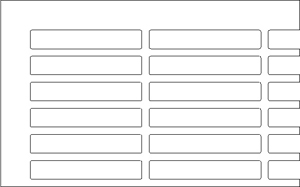

SC184
[object Object]
SC188
[object Object]
SEASHELL

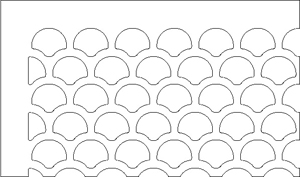

SE050
[object Object]

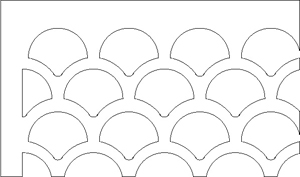

SE088
[object Object]

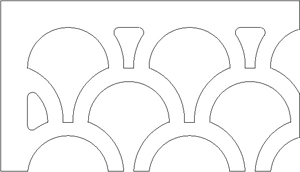

SE175
[object Object]

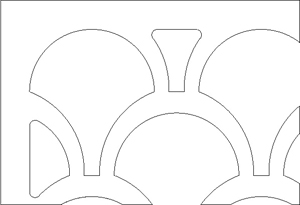

SE250
[object Object]
SQUARE LINK

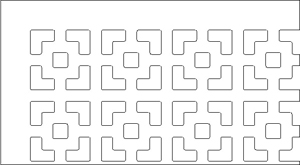

SQ100
[object Object]

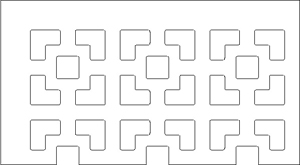

SQ125
[object Object]

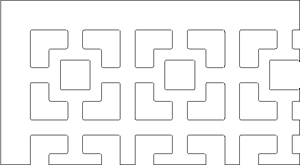

SQ150
[object Object]
SQ175
[object Object]

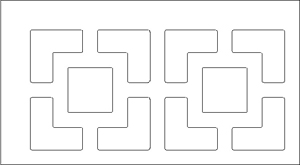

SQ200
[object Object]

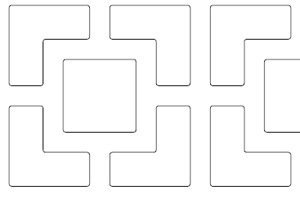

SQ225
[object Object]
TRIPLEX (PARQUET)

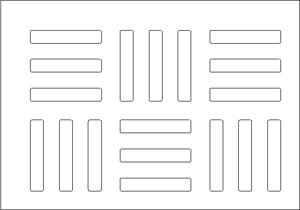

TR119
[object Object]

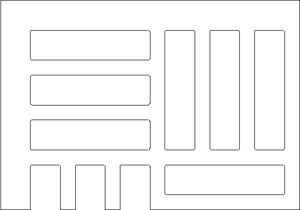

TR200
[object Object]
WINDSOR
WI062
[object Object]

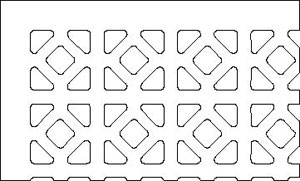

WI100
[object Object]

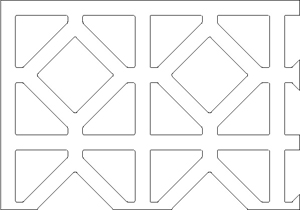

WI200
[object Object]

Size availability

Decorative grilles are typically available in a single piece up to 10 feet x 4 feet. Larger grilles of unlimited size can be made in multiple sections for field assembly. Consult the factory for details on maximum size for any specific combination of material and pattern.

materials

  • Steel
  • Galvanized steel
  • Aluminum
  • Stainless steel
  • Brass (Alloy 280 Muntz Metal or Architectural Bronze)
  • Commercial Bronze (Alloy 220)
  • Copper
  • PVC plastic

Gauges

Available thicknesses as summarized below:

  • Steel and galvanized steel: 14-gauge thru 3/16" thick
  • Stainless steel: 14-gauge thru 10-gauge
  • Aluminum: .080" thru 3/16" thick
  • Brass, bronze, and copper: .080" thru .187" thick
  • PVC: .063", .125" and .187"

Individual patterns, especially those with small holes, may not be available in the largest thicknesses listed above. Click here for maximum recommended gauges for any specific pattern. Most of these material thicknesses are in stock for fast turn-around times.

Finishes

Decorative grilles are available in a wide variety of standard and custom finishes.
Click here for list of standard paint finishes.
A color chart is also available in pdf format.

Steel and Galvanized Steel

  • Mill
  • Primer
  • Lacquer
  • Enamel or epoxy in standard or custom colors

Stainless Steel

  • Mill
  • Satin polish
  • Mirror polish
  • Primer
  • Lacquer
  • Enamel in standard or custom colors
  • Epoxy in standard or custom colors

Aluminum

  • Mill
  • Satin mill finish
  • Clear or color anodized
  • Primer
  • Lacquer
  • Enamel in standard or custom colors
  • Epoxy in standard or custom colors

Brass or Bronze

  • Satin polish
  • Mirror polish
  • Oxidized with or without lacquer

Copper

  • Mill
  • Oxidized with or without lacquer

PVC

  • Mill (grey)
  • Enamel in standard or custom colors

Customization

We have state-of-the-art laser and water jet cutting machines that can produce custom patterns through the use of CNC controls. Our skilled programmers can create a new design or re-scale a standard one to fit a particular application. Contact the factory for more details on the availability of custom cut grilles.
